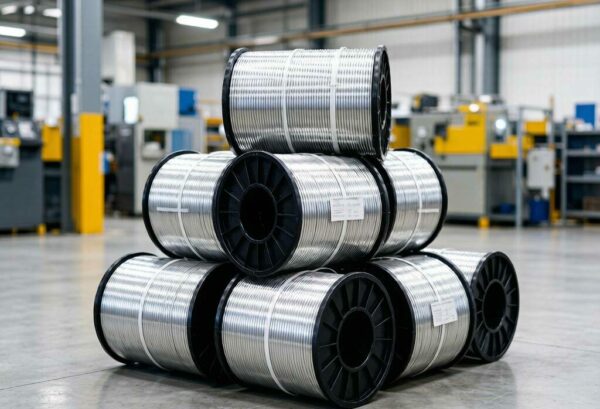

7005 Aluminum Wires

7005 aluminum wire is a versatile and durable material in the 7000 series of aluminum alloys that features high strength, excellent weldability, and lightweight. Frequently used in industries such as transportation, construction, and aerospace, 7005 aluminum is an excellent choice for structural and load-bearing applications.

If you are looking for a reliable 7005 aluminum wire supplier, comprehensive pricing information, or questions about its applications and benefits, please contact us today to get a quote or learn more about how 7005 aluminum wire can fit your project!

(UNS A97005) 7005 Aluminum Wire Specifications

Diameter: 0.5mm-50mm

Length: Roll

Alloy Temper: O, H12, H14, H16, H18, H19, H22, H24, H26, H28, T651, T73, T74, T6, T351etc.

Craft: Cutting, hemming, arc bending, welding, grinding, spraying, forming

Surface: Mill finish, no stains, without rough selvage, Anodizing

Certificate: 7075 AMS 4122 7075-T6, AMS 4124 7075-T7351, AMS 4186 7075-TF, AMS 4187 7075-0, etc

Delivery Time: 7-20 days.

7005 Aluminum Wire Data Sheet

Equivalent Grades Of Aluminum 7005 Wire

Standard	Equivalent Grade	Description
International Standards
DIN	DIN 3.4365	Similar properties but not a direct match
BS	BS L109	Close equivalent in terms of properties
AFNOR	AFNOR 7020 T6	7020 alloy, though different, shares some characteristics with 7005
U.S. Military Standards
MIL-DTL-5005	MIL-DTL-5005	Includes several alloys similar to 7005, used in military and aerospace applications
Chinese Standards
GB/T 3190-2008	GB/T 3190-2008	Includes equivalent grades for 7000 series alloys; specific equivalents may vary
Japanese Standards
JIS	JIS A7075	Not a direct equivalent but similar in strength and applications
International Standards
ISO	ISO 209	General specification for aluminum and its alloys; specific equivalents may be found based on alloy composition and mechanical properties

Chemical Composition of 7005 Aluminum Wire

Element	Typical Range (%)
Al	90.7 – 94.7
Zn	4.2 – 4.7
Mg	1.2 – 1.8
Cu	0.7 – 1.0
Mn	0.3 – 0.6
Cr	0.18 – 0.28
Si	0.10 – 0.25
Fe	0.15 – 0.40
Ti	0.05 – 0.15
Other Elements	Each ≤ 0.05

Mechanical Properties and Tempers of 7005 Aluminium Wire

Temper	Ultimate Tensile Strength (UTS)	Yield Strength (YS)	Elongation	Hardness (HB)	Description
T6	~310 – 450 MPa (45 – 65 ksi)	~250 – 380 MPa (36 – 55 ksi)	8% – 12%	85 – 95 HB	High strength and fatigue resistance, heat-treated for maximum hardness.
T651	~310 – 450 MPa (45 – 65 ksi)	~250 – 380 MPa (36 – 55 ksi)	8% – 12%	85 – 95 HB	Similar to T6, but relieved by stretching for improved dimensional stability.
T73	~310 – 450 MPa (45 – 65 ksi)	~250 – 380 MPa (36 – 55 ksi)	8% – 12%	85 – 95 HB	Good strength with enhanced resistance to stress-corrosion cracking, aged to stable condition.
T74	~310 – 450 MPa (45 – 65 ksi)	~250 – 380 MPa (36 – 55 ksi)	8% – 12%	85 – 95 HB	Aged to a specific strength level for precise performance requirements.
O	~150 – 250 MPa (22 – 36 ksi)	~80 – 150 MPa (11 – 22 ksi)	15% – 20%	60 – 80 HB	Fully annealed with lower strength, offering enhanced formability and ductility.

For high-quality 7005 aluminum wire and professional assistance, contact HXM, your reliable supplier of aluminum products.

Different Tempers of 7005 Aluminum Wires Metal

Strain-Hardened (H12, H14, H16, H18): These tempers involve increasing hardness through cold working. The numbers indicate the degree of strain hardening, with H18 being the hardest.
Strain-Hardened and Partially Annealed (H22, H24, H26, H28): These tempers involve a combination of strain hardening and partial annealing to improve formability while retaining some hardness.
Strain-Hardened and Stabilized (H32, H34, H36, H38): These tempers provide stability in mechanical properties, combining strain hardening with stabilization treatments to enhance strength and durability.

The 7005 aluminum alloy is known for its strength and is commonly used in applications requiring high strength-to-weight ratios. Different tempers of 7005 aluminum wire metal offer varying properties suited to specific applications. Here’s a breakdown of some common tempers for 7005 aluminum wires:

1. 7005-T6

Properties: This is one of the most common tempers for 7005 aluminum, offering high strength and good fatigue resistance. It is heat-treated to achieve maximum strength and hardness.
Applications: Ideal for structural applications, aerospace components, and high-stress components like bicycle frames and aircraft structures.

2. 7005-T651

Properties: This temper is similar to T6 but includes an additional step of stretching to relieve internal stresses, resulting in improved dimensional stability and reduced warping.
Applications: Used in applications where high strength and good dimensional stability are required, such as in precision aerospace and automotive parts.

3. 7005-T73

Properties: Offers good strength and excellent resistance to stress-corrosion cracking. It is aged to a stable condition for improved performance in harsh environments.
Applications: Often used in aerospace applications where resistance to stress corrosion is critical, such as aircraft fuselage and wing structures.

4. 7005-O (Annealed)

Properties: This temper is fully annealed, meaning it has been heat-treated to a soft, workable state with reduced strength compared to T6 or T651. It provides good formability and ductility.
Applications: Suitable for applications where ease of machining and forming is more important than high strength, such as in the manufacturing of complex shapes or components that will undergo further processing.

5. 7005-T74

Properties: Similar to T73 but aged to a specific strength level to enhance performance in specific conditions.
Applications: Used in high-strength applications requiring precise strength properties, such as in aerospace and high-performance sporting equipment.

Applications of 7005 Aluminum Wire Metal

Transportation

Commonly used in lightweight vehicle structures, frames, and railcars.

Aerospace

Ideal for structural components in aircraft due to its high strength and low weight.

Construction

Used in roofing, beams, and load-bearing frameworks.

Sports Equipment

Popular for manufacturing bicycle frames and camping gear.

Marine

Suitable for use in marine components like ship parts and docks due to its corrosion resistance.

AluminIum Cable Wire manufacturer，AluminIum Cable Wire supplier

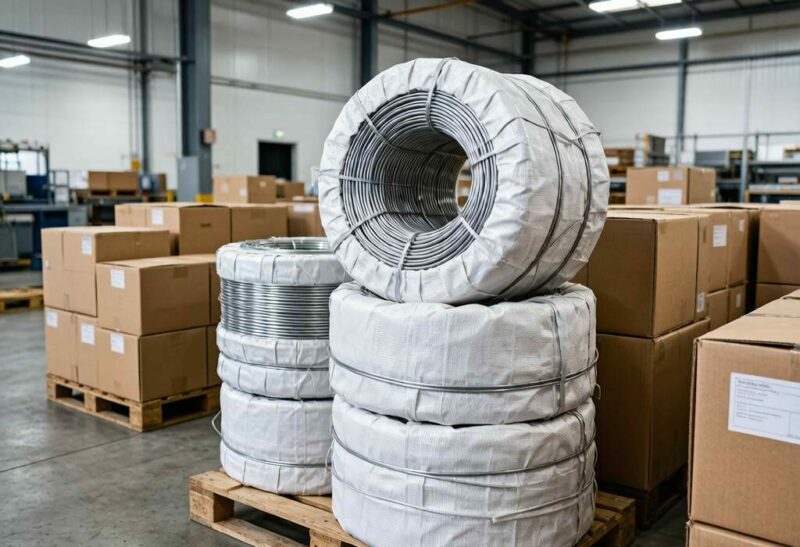

7005 Aluminum Wire Packages

The following is our company’s standard aluminum wire export packaging. If the customer has any packaging requirements, our company can meet them.

FAQ

What Is 7005 Aluminum Wire?

7005 aluminum wire is mainly composed of zinc and magnesium with trace amounts of chromium and manganese. It is known for its high strength-to-weight ratio, excellent machinability and good corrosion resistance. Its excellent properties make it a reliable alternative to traditional materials such as steel or other aluminum alloys in structural applications.
