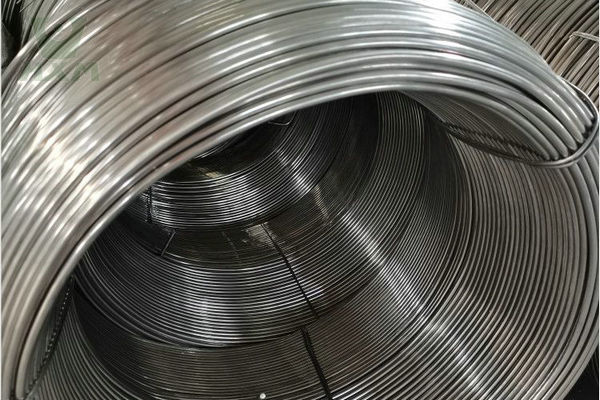

1060 Aluminium Wires Specifications
Diameter: 0.5mm-15mm
Length: Roll
Alloy Temper: HO,H12,H14,H16,H18,H19,H22,H24,H26,H28,F,H112,T651,T3,T451, T4,T6, ect.
Craft: Cutting, hemming, arc bending, welding, grinding, spraying, forming
Surface: Mill finish, no stains, without rough selvage, Anodizing
Certificate: ISO9001, CE, SGS, etc
Delivery Time: 7-20 days.
1060 Aluminum Wire Product Performance
- Machinability: 1060 aluminum sheet has excellent processing performance and is suitable for various forming processes such as bending, drawing, and deep drawing.
- Corrosion Resistance: It has good corrosion resistance in most environments, especially for indoor applications.
- Weldability: 1060 aluminum sheets can be welded by conventional methods such as gas tungsten arc welding (GTAW) and gas metal arc welding (GMAW).
- Surface Finish: The surface finish is high and suitable for decorative applications with high appearance requirements.
- Lightweight: As a pure aluminum alloy, the 1060 aluminum sheet is lightweight and often used in applications requiring weight reduction.
HXMA manufactures and wholesales 1060 Aluminium Plates in various sizes and states with competitive prices and fast shipping, and also provides customized services to meet different customers’ requirements.
Contact us for the 1060 aluminum sheet price, We look forward to your inquiry!
1060 Aluminium Wires Data Sheet
Chemical Composition of 1060 Aluminum Wire
| Element | Al | Mn | Fe | Cu | Zn | Si | Ti |
|---|---|---|---|---|---|---|---|
Composition(%) | 99.6 | 0.03 | 0.35 | 0.05 | 0.03 | 0.25 | 0.03 |
Mechanical Properties of 1060 Aluminium Wire
| Mechanical Property | Typical Value |
|---|---|
| Tensile Strength (MPa) | 55-95 |
| Yield Strength (MPa) | 15 |
| Elongation (%) | 25-30 |
| Hardness (Brinell) | 30 |
Physical Properties of 1060 Aluminum Wire
| Physical Property | Value |
|---|---|
| Density (g/cm³) | 2.7 |
| Melting Point (°C) | 660 |
| Thermal Conductivity (W/m·K) | 230 |
| Electrical Conductivity (%IACS) | 62 |
Tempers of 1060 Aluminium Wire
Here are the tempers of the 1060 aluminium wires presented in a table:
| Temper | Description |
|---|---|
| O | Annealed, recrystallized (soft) |
| H12 | Strain hardened, 1/4 hard |
| H14 | Strain hardened, 1/2 hard |
| H16 | Strain hardened, 3/4 hard |
| H18 | Strain hardened, full hard |
This table illustrates the various tempers of 1060 aluminum wires, indicating the level of hardness achieved through different heat treatment processes.
1060 Aluminum Wire Application
Electronics: Used in electronic components and housings due to its high electrical conductivity and corrosion resistance.
Packaging: Widely utilized in packaging materials for food and pharmaceutical products due to its non-toxicity, lightweight, and formability.
Reflectors: Often employed in lighting fixtures and reflectors due to its high reflectivity and durability.
Heat Exchangers: Utilized in heat exchanger fins and tubes due to its excellent thermal conductivity.
Decorative Panels: Used in architectural and decorative panels due to its smooth surface finish and ease of fabrication.
Signage: Frequently used for outdoor signage and nameplates due to its weather resistance and corrosion resistance.
Household Appliances: Employed in the manufacturing of household appliances such as cookware, utensils, and kitchen cabinets due to its formability and corrosion resistance.
Construction: Used in roofing, siding, and other architectural applications due to its lightweight nature, ease of installation, and corrosion resistance.
