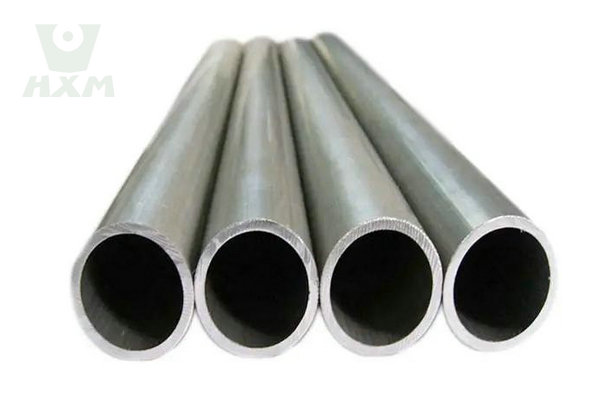

7005 Aluminum Pipe & Tube Specifications
Standards: ASTM, ASME, AMS, GB/T, JIS
Thickness: 0.2-500mm, etc.
Width: 20-2650mm, etc.
Length: Customized

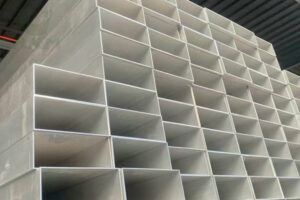

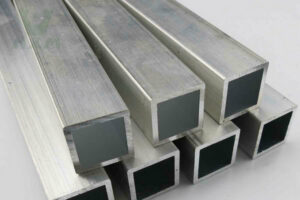

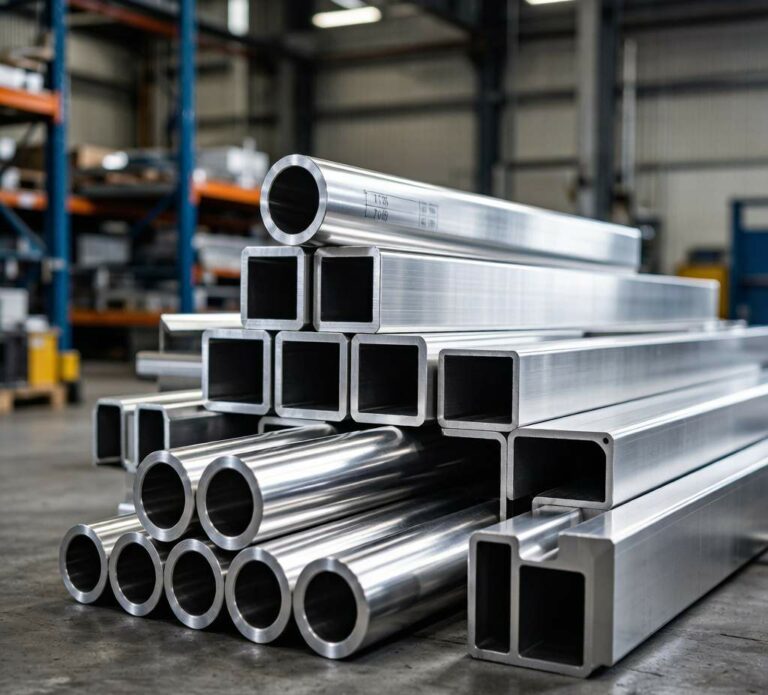

Shape: Round, Square, Rectangular, etc.
Material Temper: F, O, T4, T6, T651, H14, H112
Delivery Time: 7-20 days.
7005 Aluminum Tube & Pipe Data Sheet
Equivalent Grades Of Aluminum 7005 Tube
| Standard | Equivalent Grade | Description |
|---|---|---|
| International Standards | ||
| DIN | DIN 3.4365 | Similar properties but not a direct match |
| BS | BS L109 | Close equivalent in terms of properties |
| AFNOR | AFNOR 7020 T6 | 7020 alloy, though different, shares some characteristics with 7005 |
| U.S. Military Standards | ||
| MIL-DTL-5005 | MIL-DTL-5005 | Includes several alloys similar to 7005, used in military and aerospace applications |
| Chinese Standards | ||
| GB/T 3190-2008 | GB/T 3190-2008 | Includes equivalent grades for 7000 series alloys; specific equivalents may vary |
| Japanese Standards | ||
| JIS | JIS A7075 | Not a direct equivalent but similar in strength and applications |
| International Standards | ||
| ISO | ISO 209 | General specification for aluminum and its alloys; specific equivalents may be found based on alloy composition and mechanical properties |
Chemical Composition of 7005 Aluminum Tube
| Element | Typical Range (%) |
|---|---|
| Al | 90.7 – 94.7 |
| Zn | 4.2 – 4.7 |
| Mg | 1.2 – 1.8 |
| Cu | 0.7 – 1.0 |
| Mn | 0.3 – 0.6 |
| Cr | 0.18 – 0.28 |
| Si | 0.10 – 0.25 |
| Fe | 0.15 – 0.40 |
| Ti | 0.05 – 0.15 |
| Other Elements | Each ≤ 0.05 |
Mechanical Properties and Tempers of 7005 Aluminium Tube
| Temper | Ultimate Tensile Strength (UTS) | Yield Strength (YS) | Elongation | Hardness (HB) | Description |
|---|---|---|---|---|---|
| T6 | ~310 – 450 MPa (45 – 65 ksi) | ~250 – 380 MPa (36 – 55 ksi) | 8% – 12% | 85 – 95 HB | High strength and fatigue resistance, heat-treated for maximum hardness. |
| T651 | ~310 – 450 MPa (45 – 65 ksi) | ~250 – 380 MPa (36 – 55 ksi) | 8% – 12% | 85 – 95 HB | Similar to T6, but relieved by stretching for improved dimensional stability. |
| T73 | ~310 – 450 MPa (45 – 65 ksi) | ~250 – 380 MPa (36 – 55 ksi) | 8% – 12% | 85 – 95 HB | Good strength with enhanced resistance to stress-corrosion cracking, aged to stable condition. |
| T74 | ~310 – 450 MPa (45 – 65 ksi) | ~250 – 380 MPa (36 – 55 ksi) | 8% – 12% | 85 – 95 HB | Aged to a specific strength level for precise performance requirements. |
| O | ~150 – 250 MPa (22 – 36 ksi) | ~80 – 150 MPa (11 – 22 ksi) | 15% – 20% | 60 – 80 HB | Fully annealed with lower strength, offering enhanced formability and ductility. |
For high-quality 7005 aluminum Tube and professional assistance, contact HXM, your reliable supplier of aluminum products.
Different Tempers of 7005 Aluminum Tubes Metal
-
Strain-Hardened (H12, H14, H16, H18): These tempers involve increasing hardness through cold working. The numbers indicate the degree of strain hardening, with H18 being the hardest.
-
Strain-Hardened and Partially Annealed (H22, H24, H26, H28): These tempers involve a combination of strain hardening and partial annealing to improve formability while retaining some hardness.
-
Strain-Hardened and Stabilized (H32, H34, H36, H38): These tempers provide stability in mechanical properties, combining strain hardening with stabilization treatments to enhance strength and durability.
The 7005 aluminum alloy is known for its strength and is commonly used in applications requiring high strength-to-weight ratios. Different tempers of 7005 aluminum tubes metal offer varying properties suited to specific applications. Here’s a breakdown of some common tempers for 7005 aluminum tubes:
1. 7005-T6
- Properties: This is one of the most common tempers for 7005 aluminum, offering high strength and good fatigue resistance. It is heat-treated to achieve maximum strength and hardness.

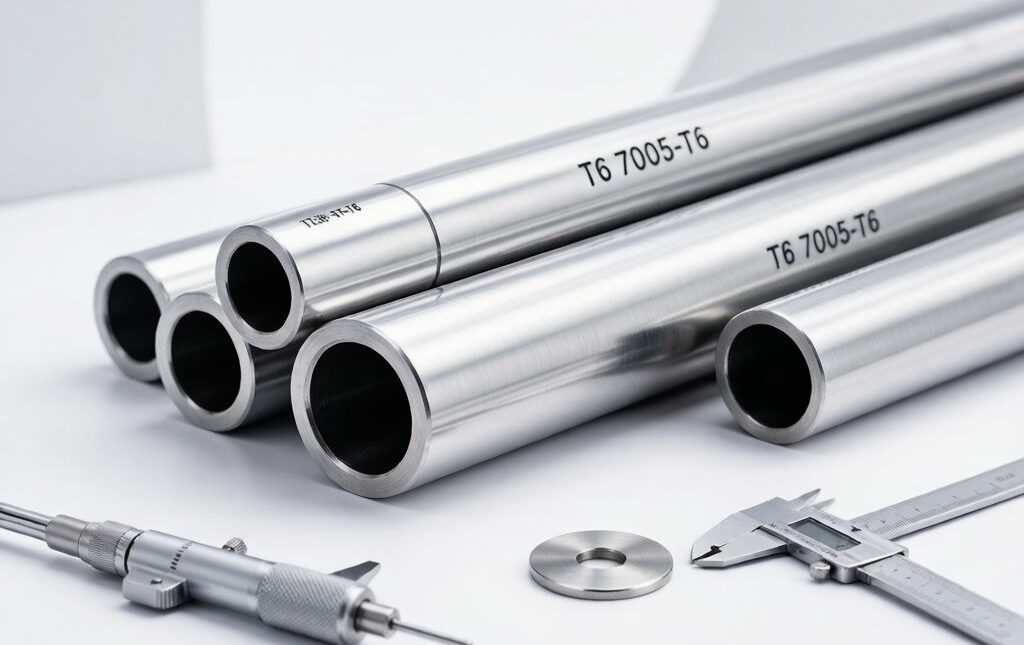

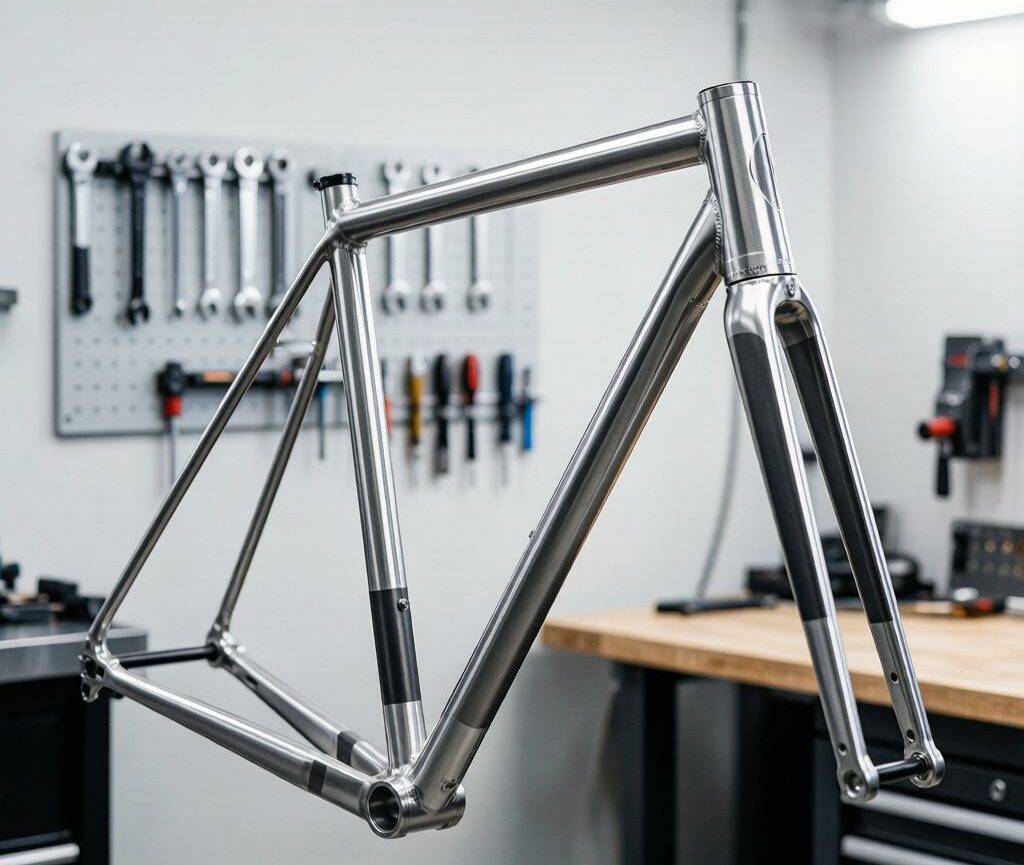

- Applications: Ideal for structural applications, aerospace components, and high-stress components like bicycle frames and aircraft structures.
2. 7005-T651
- Properties: This temper is similar to T6 but includes an additional step of stretching to relieve internal stresses, resulting in improved dimensional stability and reduced warping.
- Applications: Used in applications where high strength and good dimensional stability are required, such as in precision aerospace and automotive parts.
3. 7005-T73
- Properties: Offers good strength and excellent resistance to stress-corrosion cracking. It is aged to a stable condition for improved performance in harsh environments.
- Applications: Often used in aerospace applications where resistance to stress corrosion is critical, such as aircraft fuselage and wing structures.
4. 7005-O (Annealed)
- Properties: This temper is fully annealed, meaning it has been heat-treated to a soft, workable state with reduced strength compared to T6 or T651. It provides good formability and ductility.
- Applications: Suitable for applications where ease of machining and forming is more important than high strength, such as in the manufacturing of complex shapes or components that will undergo further processing.
5. 7005-T74
- Properties: Similar to T73 but aged to a specific strength level to enhance performance in specific conditions.
- Applications: Used in high-strength applications requiring precise strength properties, such as in aerospace and high-performance sporting equipment.
Applications of 7005 Aluminum Pipe Metal
7005 Aluminum Pipe & Tube Packages
The following is our company’s standard aluminum pipe & tube export packaging. If the customer has any packaging requirements, our company can meet them.
