HXM is a leading 7005 aluminum coil supplier and manufacturer in China. We provide aluminum coils with excellent strength and durability, which are ideal for aerospace, sports equipment, and structural applications. Our 7005 aluminum coils are carefully designed to have excellent fatigue resistance and a high strength-to-weight ratio.
Are you looking for 7005 aluminum coil prices? We have a lot of 7005 aluminum coils in stock in our warehouse, and I believe we can give you a competitive price and fast delivery.
Contact us today to learn more about our 7005 aluminum coil products and get a custom quote.
7005 Aluminium Coil Specifications
Standards : ASTM B209 / ASME SB209
Temper : O, F, H12, H14, H16, H18, H19, H22, H24, H26, H32, H34, H36, H38, H111, H112, H321, T3, T4, T5, T6, T7, T351, T451, T651, T851
Thickness: 0.2~300mm
Width: 500~2500mm
Surface: Bright, polished, hairline, brush, sand blast, checkered, embossed, etching, etc
Finish: Mill, Customer specific finish
Delivery Time: 7-20 days.
7005 Aluminum Coil Data Sheet
Equivalent Grades Of Aluminum 7005 Coil
| Standard | Equivalent Grade | Description |
|---|---|---|
| International Standards | ||
| DIN | DIN 3.4365 | Similar properties but not a direct match |
| BS | BS L109 | Close equivalent in terms of properties |
| AFNOR | AFNOR 7020 T6 | 7020 alloy, though different, shares some characteristics with 7005 |
| U.S. Military Standards | ||
| MIL-DTL-5005 | MIL-DTL-5005 | Includes several alloys similar to 7005, used in military and aerospace applications |
| Chinese Standards | ||
| GB/T 3190-2008 | GB/T 3190-2008 | Includes equivalent grades for 7000 series alloys; specific equivalents may vary |
| Japanese Standards | ||
| JIS | JIS A7075 | Not a direct equivalent but similar in strength and applications |
| International Standards | ||
| ISO | ISO 209 | General specification for aluminum and its alloys; specific equivalents may be found based on alloy composition and mechanical properties |
Chemical Composition of 7005 Aluminum Coil
| Element | Typical Range (%) |
|---|---|
| Al | 90.7 – 94.7 |
| Zn | 4.2 – 4.7 |
| Mg | 1.2 – 1.8 |
| Cu | 0.7 – 1.0 |
| Mn | 0.3 – 0.6 |
| Cr | 0.18 – 0.28 |
| Si | 0.10 – 0.25 |
| Fe | 0.15 – 0.40 |
| Ti | 0.05 – 0.15 |
| Other Elements | Each ≤ 0.05 |
Mechanical Properties and Tempers of 7005 Aluminium Coil
| Temper | Ultimate Tensile Strength (UTS) | Yield Strength (YS) | Elongation | Hardness (HB) | Description |
|---|---|---|---|---|---|
| T6 | ~310 – 450 MPa (45 – 65 ksi) | ~250 – 380 MPa (36 – 55 ksi) | 8% – 12% | 85 – 95 HB | High strength and fatigue resistance, heat-treated for maximum hardness. |
| T651 | ~310 – 450 MPa (45 – 65 ksi) | ~250 – 380 MPa (36 – 55 ksi) | 8% – 12% | 85 – 95 HB | Similar to T6, but relieved by stretching for improved dimensional stability. |
| T73 | ~310 – 450 MPa (45 – 65 ksi) | ~250 – 380 MPa (36 – 55 ksi) | 8% – 12% | 85 – 95 HB | Good strength with enhanced resistance to stress-corrosion cracking, aged to stable condition. |
| T74 | ~310 – 450 MPa (45 – 65 ksi) | ~250 – 380 MPa (36 – 55 ksi) | 8% – 12% | 85 – 95 HB | Aged to a specific strength level for precise performance requirements. |
| O | ~150 – 250 MPa (22 – 36 ksi) | ~80 – 150 MPa (11 – 22 ksi) | 15% – 20% | 60 – 80 HB | Fully annealed with lower strength, offering enhanced formability and ductility. |
For high-quality 7005 aluminum sheets and professional assistance, contact HXM, your reliable supplier of aluminum products.
Different Tempers of 7005 Aluminum Coils Metal
-
Strain-Hardened (H12, H14, H16, H18): These tempers involve increasing hardness through cold working. The numbers indicate the degree of strain hardening, with H18 being the hardest.
-
Strain-Hardened and Partially Annealed (H22, H24, H26, H28): These tempers involve a combination of strain hardening and partial annealing to improve formability while retaining some hardness.
-
Strain-Hardened and Stabilized (H32, H34, H36, H38): These tempers provide stability in mechanical properties, combining strain hardening with stabilization treatments to enhance strength and durability.
The 7005 aluminum alloy is known for its strength and is commonly used in applications requiring high strength-to-weight ratios. Different tempers of 7005 aluminum coils metal offer varying properties suited to specific applications. Here’s a breakdown of some common tempers for 7005 aluminum coils:
1. 7005-T6
- Properties: This is one of the most common tempers for 7005 aluminum, offering high strength and good fatigue resistance. It is heat-treated to achieve maximum strength and hardness.
- Applications: Ideal for structural applications, aerospace components, and high-stress components like bicycle frames and aircraft structures.
2. 7005-T651
- Properties: This temper is similar to T6 but includes an additional step of stretching to relieve internal stresses, resulting in improved dimensional stability and reduced warping.
- Applications: Used in applications where high strength and good dimensional stability are required, such as in precision aerospace and automotive parts.
3. 7005-T73
- Properties: Offers good strength and excellent resistance to stress-corrosion cracking. It is aged to a stable condition for improved performance in harsh environments.
- Applications: Often used in aerospace applications where resistance to stress corrosion is critical, such as aircraft fuselage and wing structures.
4. 7005-O (Annealed)
- Properties: This temper is fully annealed, meaning it has been heat-treated to a soft, workable state with reduced strength compared to T6 or T651. It provides good formability and ductility.
- Applications: Suitable for applications where ease of machining and forming is more important than high strength, such as in the manufacturing of complex shapes or components that will undergo further processing.
5. 7005-T74
- Properties: Similar to T73 but aged to a specific strength level to enhance performance in specific conditions.
- Applications: Used in high-strength applications requiring precise strength properties, such as in aerospace and high-performance sporting equipment.
Applications of 7005 Aluminum Coil Metal

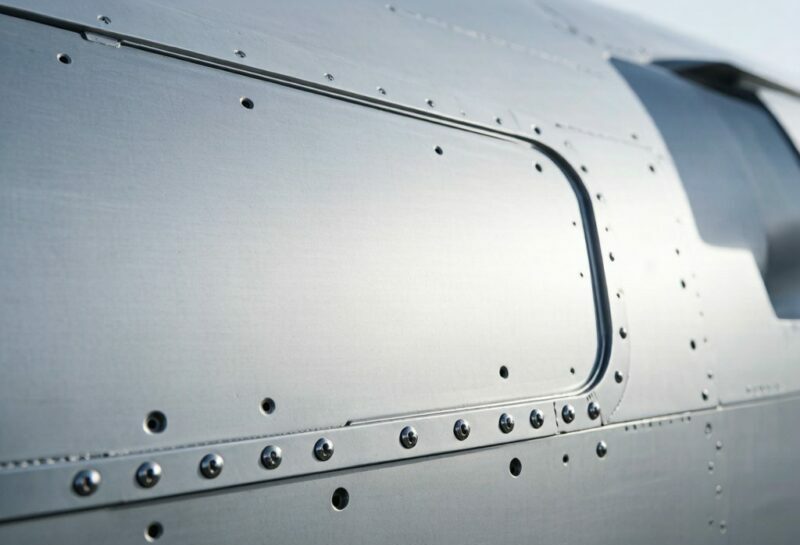

Aerospace: Commonly used in aerospace components where strength and lightweight properties are crucial.
Sports Equipment: Employed in high-performance sports equipment such as bicycle frames and golf clubs due to its strength-to-weight ratio.
Structural Components: Used in various structural applications where high strength is required.

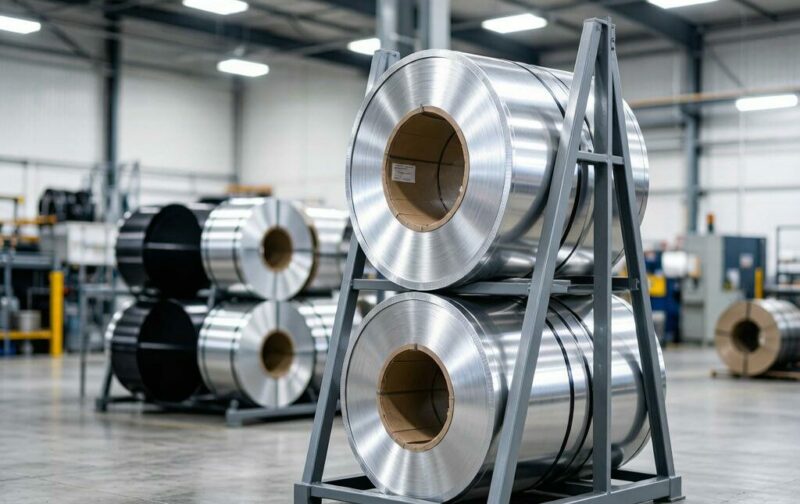

7005 Aluminum Coil Packages
The following is our company’s standard aluminum coil export packaging. If the customer has any packaging requirements, our company can meet them.
FAQ
What Is 7005 Aluminum Coil?
7005 Aluminum Coil is part of the 7000 series of aluminum alloys, which are primarily alloyed with zinc.
7000 Series Aluminum
7005 Aluminum Coil VS Other Aluminum Coil:
| Property | 7005 Aluminum Coil | 6061 Aluminum Coil | 7075 Aluminum Coil | 2024 Aluminum Coil | 5052 Aluminum Coil |
|---|---|---|---|---|---|
| Tensile Strength | 345 – 430 MPa (50 – 62 ksi) | 240 – 310 MPa (35 – 45 ksi) | 505 – 570 MPa (73 – 83 ksi) | 420 – 500 MPa (61 – 73 ksi) | 210 – 260 MPa (30 – 38 ksi) |
| Yield Strength | 275 – 345 MPa (40 – 50 ksi) | 155 – 270 MPa (22 – 39 ksi) | 435 – 505 MPa (63 – 73 ksi) | 345 – 415 MPa (50 – 60 ksi) | 105 – 135 MPa (15 – 20 ksi) |
| Corrosion Resistance | Good (General use) | Good (General use) | Good (Stress corrosion resistant) | Fair (Prone to stress corrosion cracking) | Excellent (Marine environments) |
| Fatigue Resistance | Good | Good | Excellent | Good | Good |
| Heat Treatability | High | High | High | High | Limited |
| Workability | Moderate | Excellent | Moderate | Moderate | Good |
| Weldability | Moderate | Excellent | Moderate | Fair | Good |
| Applications | Aerospace, sports equipment, structural components | Aerospace, structural, automotive | Aerospace, military, high-stress automotive | Aerospace, structural components | Marine, automotive, tanks |
- 7005 Aluminum Coil: Known for its high strength and good fatigue resistance, making it suitable for aerospace, sports equipment, and structural applications. It has moderate workability and weldability and is heat-treatable to enhance its properties.
6061 Aluminum Coil: Offers a good balance of strength, workability, and corrosion resistance, making it versatile for a wide range of applications including aerospace, automotive, and structural components. Highly weldable and easy to work with.
7075 Aluminum Coil: Provides superior strength and fatigue resistance, ideal for high-performance applications such as aerospace and military. It is heat-treatable and has good stress corrosion resistance, but less formable and weldable than some other alloys.
2024 Aluminum Coil: Offers high strength and good fatigue resistance, commonly used in aerospace. However, it is more prone to stress corrosion cracking compared to 7005 and 7075.
5052 Aluminum Coil: Known for its excellent corrosion resistance, especially in marine environments, but has lower strength compared to 7005 and 7075. It is suitable for applications requiring high corrosion resistance and moderate strength.
How Can I Get A Sample Of 7005 Aluminum Coils?
Please contact us directly and send us the material, specification, quantity, and delivery address of the samples you need.
Features of 7005 Aluminum Coil:
Alloy Series: 7000 Series
High Strength: 7005 aluminum is renowned for its excellent tensile and yield strength, making it ideal for applications where high strength is essential.
Heat Treatability: This alloy can be heat-treated to enhance its mechanical properties, which is valuable for high-performance applications.
Fatigue Resistance: It offers good fatigue resistance, which is crucial for components subjected to cyclic loading and stress.
Corrosion Resistance: While it has good general corrosion resistance, it is not as resistant to stress corrosion cracking as some other alloys like 5052 or 6061.
