6061 Aluminum Bars Specifications
Standards: ASTM B221, B211, B565, B316, DIN AlMnCu

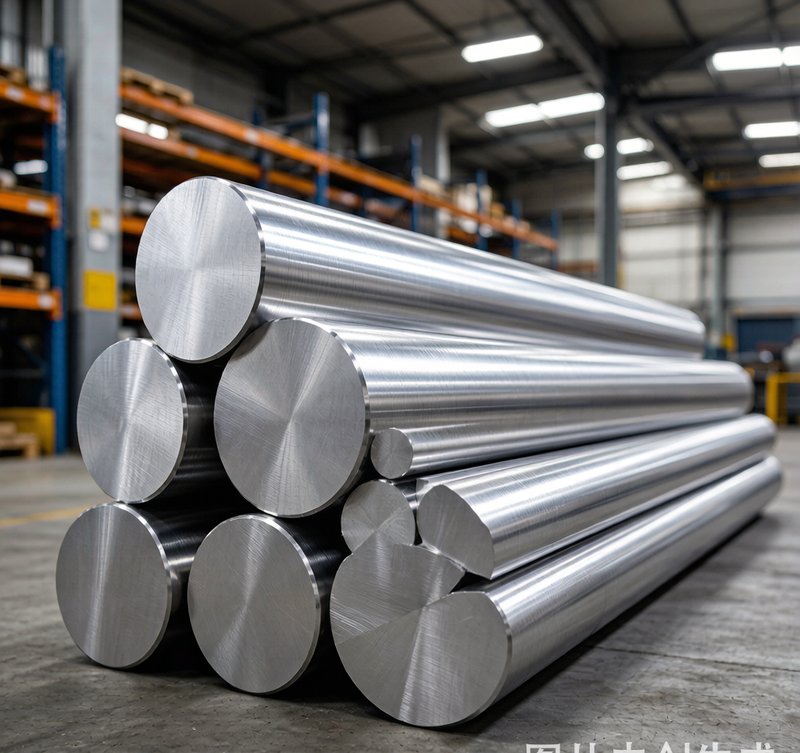

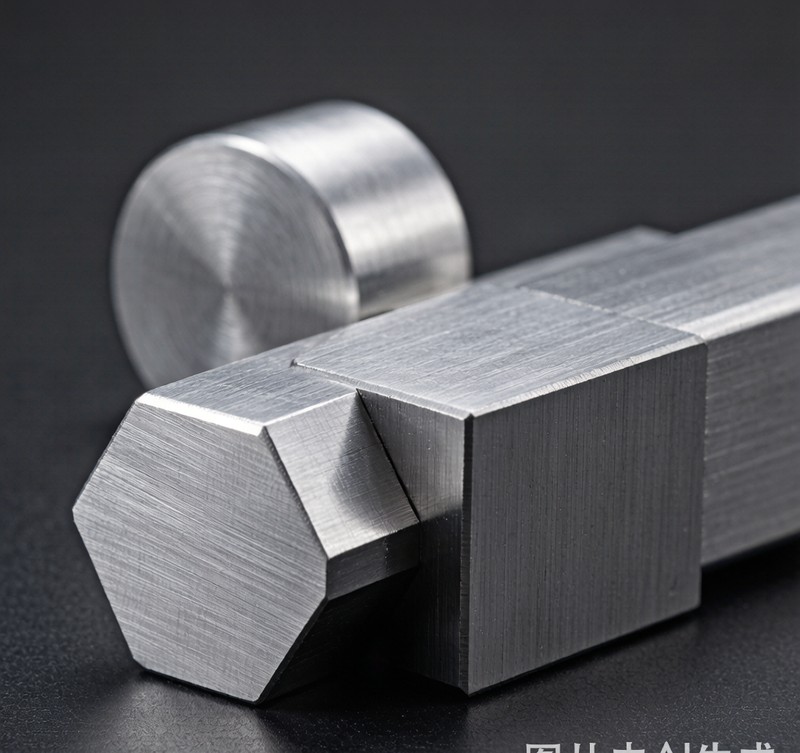

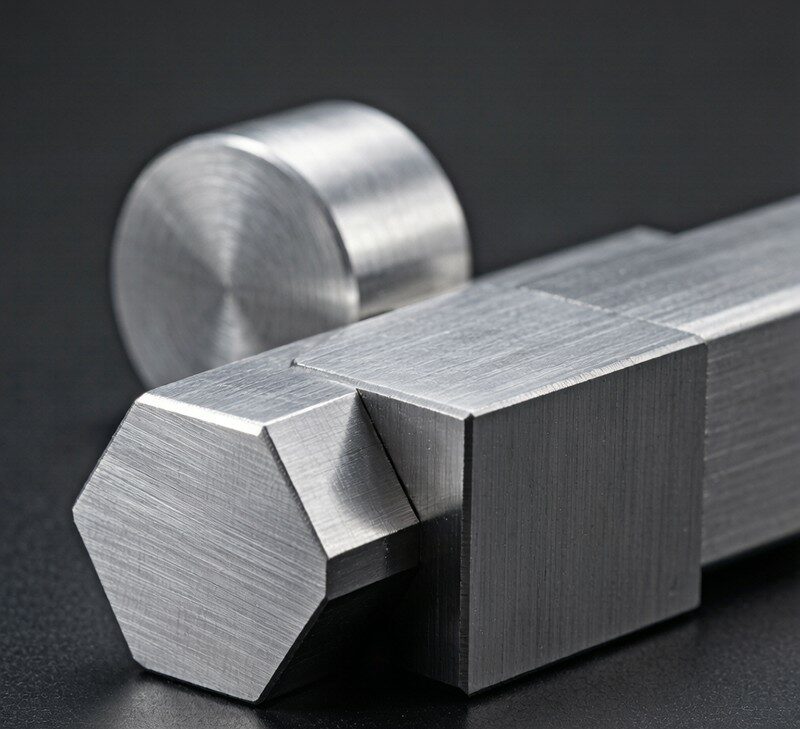

Aluminum bar form: Aluminum round, hexagonal, flat, semi-circular, oval, rectangular black, and glossy finish
Aluminum round bar diameter: 0.1-600mm, etc.
Aluminum hexagonal bar: 0.1-600mm, etc.
Aluminum angle bar size: 0.5mm*40mm*40mm-20mm*400mm*400mm
Aluminum flat steel thickness: 0.1-600mm, etc.
Aluminum flat bar size: 1-2500mm, etc.
Aluminum round bar length: 1-12m, random, fixed, and cut length or according to customer requirements
Product Introduction
Ordinary duralumin alloy, good machinability, with medium strength
6061 is a heat-treated reinforcable alloy with good formability, weldability, machinability, and medium strength, and can maintain good operability after annealing.
The main alloying elements of Alloy 6061 are magnesium and silicon which form the Mg2Si phase. If it contains a certain amount of manganese and chromium, it can neutralize the bad effects of iron; Sometimes a small amount of copper or zinc is added to improve the strength of the alloy without significantly reducing its corrosion resistance; There is also a small amount of copper in the conductive material to offset the adverse effects of titanium and iron on conductivity; Zirconium or titanium can refine grains and control recrystallization structure; To improve machinability, lead and bismuth can be added. In Mg2Si is solidly soluble in aluminum, so that the alloy has the function of artificial aging hardening.
6061-T651 is the main alloy of 6061 alloy, a high-quality aluminum alloy product produced by heat treatment pre-stretching process, although its strength can not be compared with the 2000 series or 7000 series, its magnesium, and silicon alloy characteristics, with excellent processing performance, and excellent welding characteristics and plating, good corrosion resistance, high toughness and no deformation after processing, dense and defectless material and easy polishing, easy coloring film, excellent oxidation effect and other excellent characteristics.
Application of 6061 Aluminum Bars
6061 applications include aerospace fixtures, electrical fixtures, and communications, but also widely used in automation machinery parts, precision machining, mold manufacturing, electronics and precision instruments, SMT, PC board solder carriers, and so on.
Aerospace: used to manufacture aircraft structural components and engine parts.
Automotive Industry: used for frames, chassis, wheels and driveline components.
Marine Industry: used for hulls, superstructures and various marine hardware.
Construction Industry: used for building facades, roofs, structural frames and pedestrian bridges.
Manufacturing and Industrial: used for mechanical parts, industrial equipment and heat exchangers.
Electronics and Electrical: used for radiators and electrical housings.
Consumer Goods: used for bicycle frames, sports equipment and furniture.
Mold Manufacturing: used to make jigs, fixtures and plastic injection molds.
6061 Aluminum Bar Data Sheet
Chemical Composition
Alloy grade | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Zr | other | AL | |||
New grade | Old grade | 0.4-0.8 | 0.70 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | —— | each | total | ||
6061 | LD31 | 0.05 | 0.15 | Allowance | ||||||||||
Mechanical Properties
| Aluminum alloy grade and | tensile strength Rm/Mpa | Yield strength Rp0.2/Mpa | Elongation/% | hardness/ HBWα |
| 6061-T6 | 290 | 240 | 10 | 95 |
Physical Properties
| Aluminum alloy grade and state | Coefficient of thermal expansion | Melting point range (℃) | electrical conductivity 20℃(68℉) (%IACS) | Resistivity20℃(68℉) Ωmm2/m | density (20℃)(g/cm3) |
| 6061-T6 | 23.6 | 582-652 | 40 | 0.043 | 2.8 |
Quality Characteristics
Density: 2.80g/cm³.
Modulus of elasticity: Tensile: 68.9 GPa (10.0×106psi), compression 69.7 GPa (10.1×106psi)
Hardness: O state: 30HB; T4, T451 Status: 65HB; T6, T651 Status: 95HB.
6061 Aluminum Bar Packages
The following is our company’s standard aluminum bar export packaging. If the customer has any packaging requirements, our company can meet them.
FAQ
1. What is 6061 Aluminum Bar?
6061 aluminum bar is a solid, cylindrical piece of aluminum alloy made primarily from aluminum, magnesium, and silicon. It is one of the most versatile and widely used aluminum alloys, known for its combination of excellent mechanical properties, ease of fabrication, and corrosion resistance.
2. What are the Main Components of 6061 Aluminum Bar?
The main components of 6061 aluminum alloy include aluminum (Al), magnesium (Mg) and silicon (Si). Magnesium improves the strength and corrosion resistance of the alloy, while silicon enhances strength and hardness.
3. What are the Typical Applications of 6061 Aluminum Bars?
Aerospace: Aircraft structural components, wings, etc.
Automotive industry: Frames, chassis and wheels.
Marine industry: Hulls and marine hardware.
Construction industry: Building facades, structural frames and bridges.
Manufacturing and industrial: Mechanical parts, heat exchangers and industrial equipment.
Electronics and electrical: Radiators and electrical housings.
Consumer products: Bicycle frames, sports equipment and furniture.
Mold manufacturing: Jigs, fixtures and plastic injection molds.
4. What are the Main Characteristics of 6061 Aluminum Bars?
6061 aluminum bar has the following characteristics:
High strength-to-weight ratio: High strength but light weight.
Good corrosion resistance: Resistant to corrosion in a variety of environments.
Excellent machinability: Easy to process and form.
Weldability: Suitable for a variety of welding techniques.
Good thermal conductivity: Has good thermal and electrical conductivity.
5. Can 6061 Aluminum Bar be Heat Treated?
Yes, 6061 aluminum alloy can be heat treated (such as T6 state) to enhance its mechanical properties, including improving strength and hardness.
6. Is 6061 Aluminum Bar Easy to Weld?
Yes, 6061 aluminum bar has good weldability and can be welded using a variety of welding techniques, such as TIG welding and MIG welding.
7. What is the Corrosion Resistance of 6061 Aluminum Bar?
6061 aluminum alloy has excellent corrosion resistance, especially in marine and industrial environments.
8. What are the Mechanical Properties of 6061 Aluminum Bar?
6061 aluminum bar has good mechanical properties in T6 state, including high tensile strength and good ductility, suitable for a variety of structural and engineering applications.
9. How to Process 6061 Aluminum Bar?

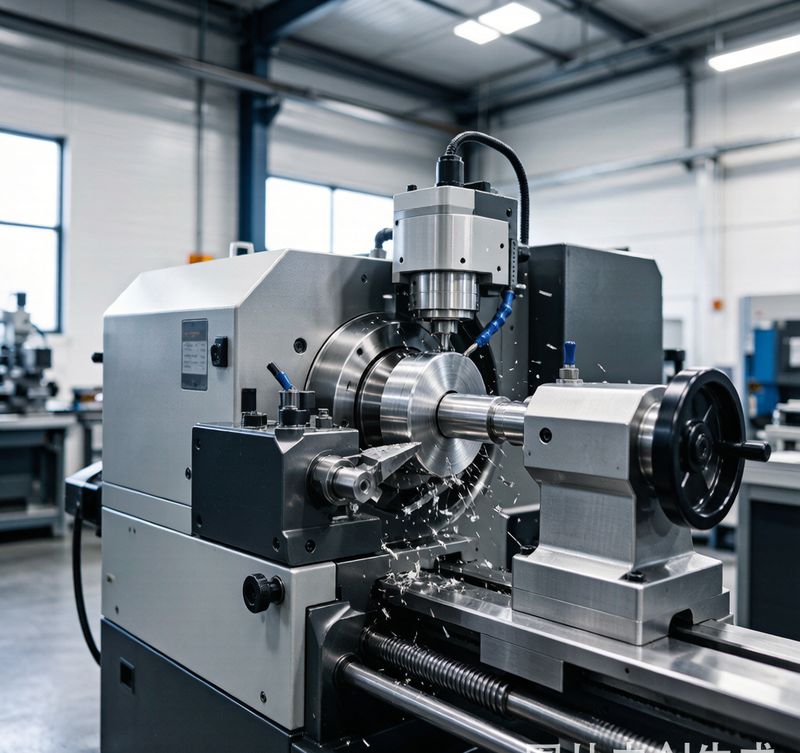

6061 aluminum bar is easy to process and can be processed using traditional processing methods such as turning, milling, drilling and sawing.
10. What are the Advantages of 6061 Aluminum Bar Compared with Other Aluminum Alloys?
Compared with 7075 Aluminum Alloy:
Advantages: 7075 aluminum alloy has higher strength, but higher cost and poor corrosion resistance. 6061 aluminum alloy has advantages in corrosion resistance and machinability and is more cost-effective.
Compared with 2024 Aluminum Alloy:
Advantages: 2024 aluminum alloy has higher tensile strength, but poor corrosion resistance and poor weldability. 6061 aluminum alloy performs better in corrosion resistance and weldability and has a wider range of applications.
Compared with 5052 Aluminum Alloy:
Advantages: 5052 aluminum alloy has good corrosion resistance and weldability, but lower strength. 6061 aluminum alloy is superior in strength and hardness and is suitable for applications that require higher strength.
